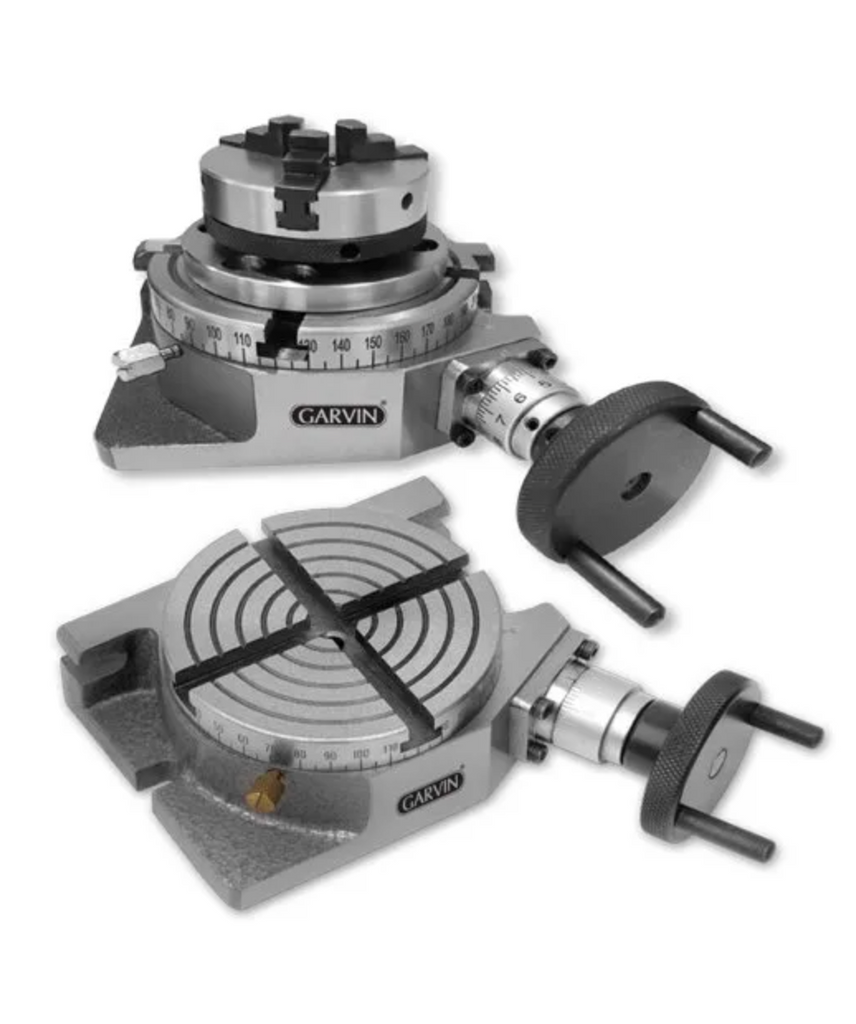

4” (100mm) Rotary Table 4 Slot with M6 Clamping Kit | Vertical & Horizontal Milling Table

Product Specification

The 4” (100mm) Rotary Table, designed for smooth, accurate rotation in milling, drilling, and precision machining tasks. Built for reliability and versatility, it’s the ideal choice for model makers, toolmakers, and anyone working on detailed, small-scale projects.

• Table Diameter: 100mm / 4″
• Vertical Centre Height: 2-1/16″ (Approx. 51mm).
• Worm Gear Ratio: 36:1
• Slots: 4 Slot Design
• Calibration:
  • Hand wheel graduated in 10-minute divisions.
  • Hand wheel can be set to zero for precise repeat cuts.
  • Calibrated in 5-minute increments around the rim.
• Degree Scale: Full 360° scale on dial.
• Operation: Can be used both vertically & horizontally.

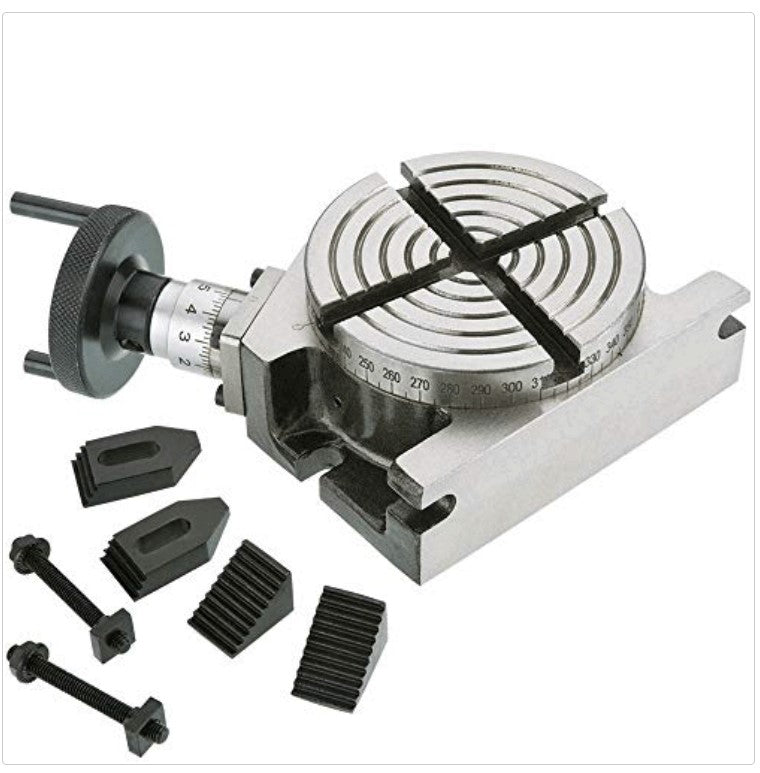

• Supplied with M6 Clamping Kit: Includes clamping studs, T-nuts, clamping straps, step blocks.
• Precision worm gear drive for smooth rotation & lash adjustment screw for minimal backlash.
• Ball bearing rotary support for enhanced stability and clear reference lines for accurate alignment.

This 4” rotary table ensures precise angle cuts and circular machining operations. Its dual vertical and horizontal functionality makes it a versatile addition to any workshop.
