3" Inch Rotary Table Horizontal & Vertical 4 Slot with Clamping Kit

Product Specification

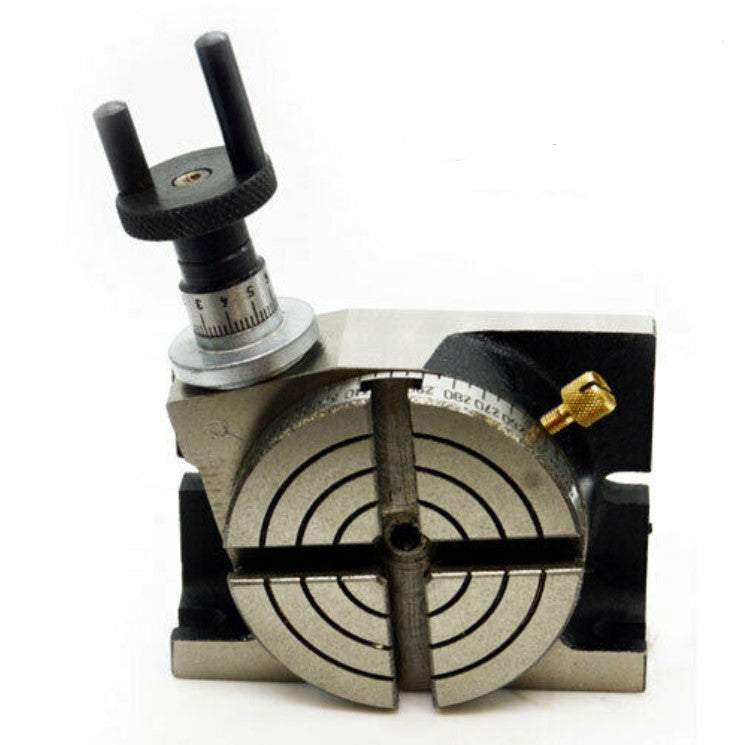

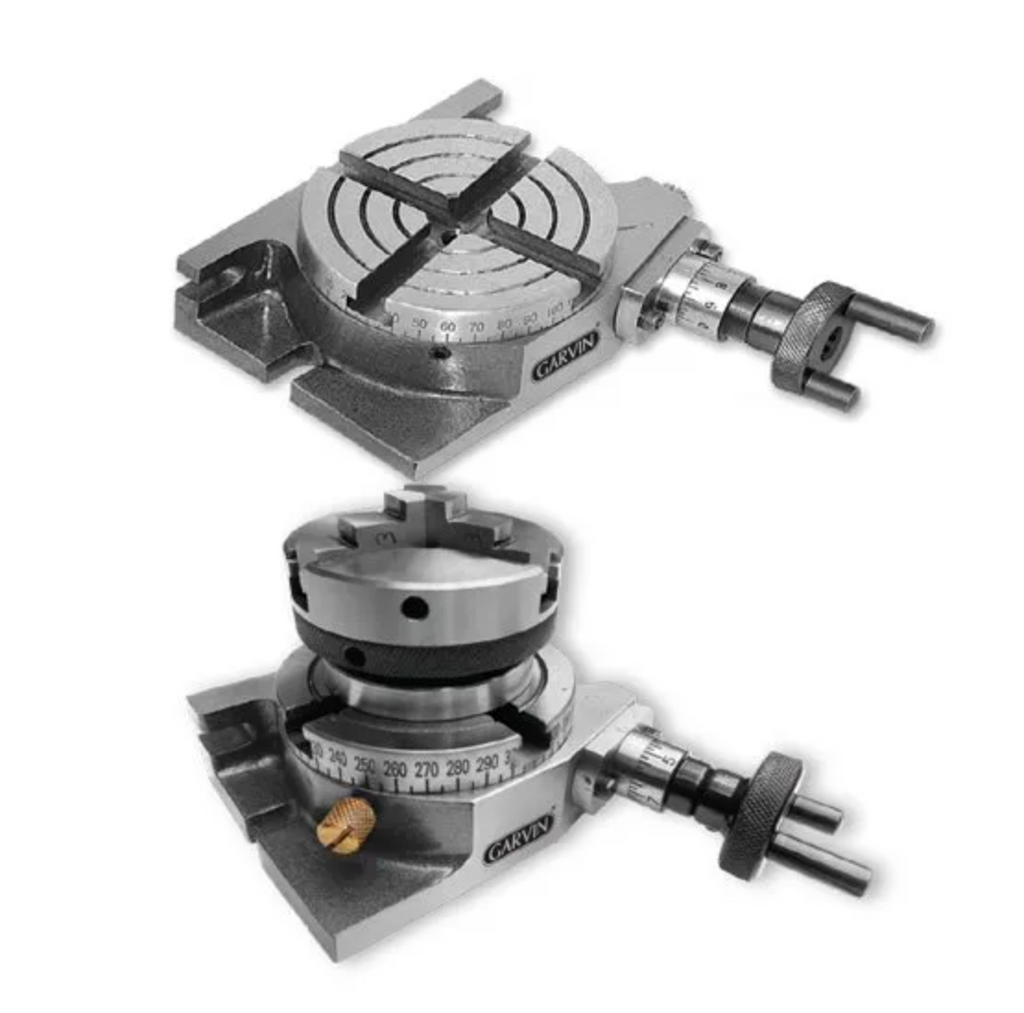

The 3” (75mm) Low Profile Rotary Table, engineered for accuracy, smooth operation, and versatility. Designed for mini mills and compact setups, it’s an excellent choice for machines like Taig Tools, Sherline Products, and Grizzly Industrial as well as CNC routers.

Built for precision metalworking, this rotary table ensures accurate drilling, cutting, and indexing at exact intervals around a fixed axis.

• Table Diameter: 3” / 75mm & Table Height: 42mm
• Table Height with Chuck: 95mm
• Worm Gear Ratio: 36:1
  • 1 full handle rotation = 10° table rotation
• Handle Dial: 60 increments (each = 10 minutes)
• Hand Wheel: 10-minute divisions, can be set to zero.
• T-Slot Width: 13mm
• Mounting: Horizontal & Vertical.
• Markings: 360° table marking with Vernier scale for fine adjustments.
• Supplied with M6 Clamping Kit: includes clamping studs, T-nuts, clamping straps, step blocks.

Ideal for Mini Mill users, CNC router operators, Model makers, Toolmakers & Precision metalworking enthusiasts.
